ECOFLEX Compact Wet Milling Set

Overview

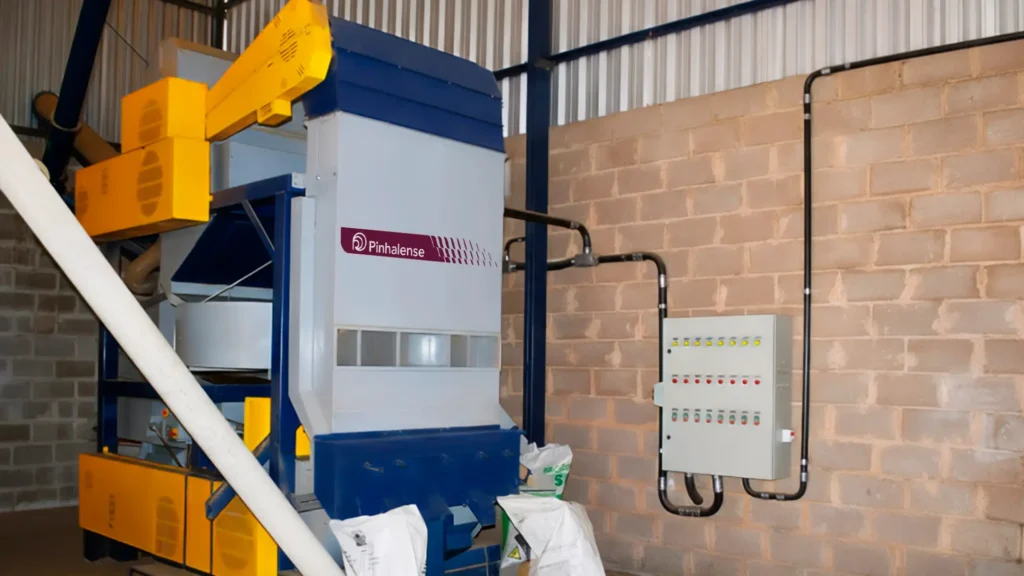

The Pinhalense ECOFLEX Compact Wet Milling Set is a compact coffee processing solution designed for small and medium-scale producers who want to produce high-quality pulped or pulped natural coffee while minimizing water consumption and operational costs.

Developed with environmental sustainability in mind, the ECOFLEX system allows coffee processors to achieve efficient wet processing with reduced water usage and simplified operation. The system can be configured with different optional modules depending on the needs of the processing operation.

Its modular design enables producers to start with a basic configuration and expand the system later as production grows.

Key Features

  • Compact wet coffee milling system

  • Designed for small and medium coffee producers

  • Low water consumption processing

  • Modular configuration with optional components

  • Easy installation and maintenance

  • Efficient pulping and parchment separation

Core Processing Functions

The ECOFLEX system integrates several processing stages into a single compact unit.

Coffee Pulping

The pulping system removes the outer pulp from ripe coffee cherries while separating immature beans and impurities.

Parchment Separation

A rotary screen system separates pulped coffee beans from waste materials and remaining pulp residues.

Mucilage Removal (Optional)

The system can include a progressive mucilage remover, which removes the mucilage layer from the coffee beans while maintaining bean integrity.

Feed System (Optional)

A feed screw conveyor can be integrated to automate the feeding of coffee cherries into the pulping system.

Available Configurations

The ECOFLEX system can be supplied in several configurations depending on processing requirements.

Configuration Description
Basic Module Pulp separator and parchment separator
Basic Module + Mucilage Remover Includes progressive mucilage removal system
Basic Module + Screen Pulper Includes screen pulper for enhanced pulping
Module + Feed Screw Conveyor Automated feeding system
Complete ECOFLEX System Fully equipped wet milling solution

Performance

Specification Value
Processing Capacity 820 – 2000 liters/hour
Water Consumption 0.12 – 0.50 liters per liter of coffee
Electric Motor 5 – 10 HP depending on configuration
Weight 416 – 676 kg depending on model

Applications

The ECOFLEX wet milling system is suitable for:

  • Coffee cooperatives

  • Smallholder coffee producers

  • Coffee processing stations

  • Specialty coffee farms

  • Coffee export operations

Product Inquiry

Interested in this equipment for your coffee processing operation?

Contact us for technical specifications, availability, and installation support.
