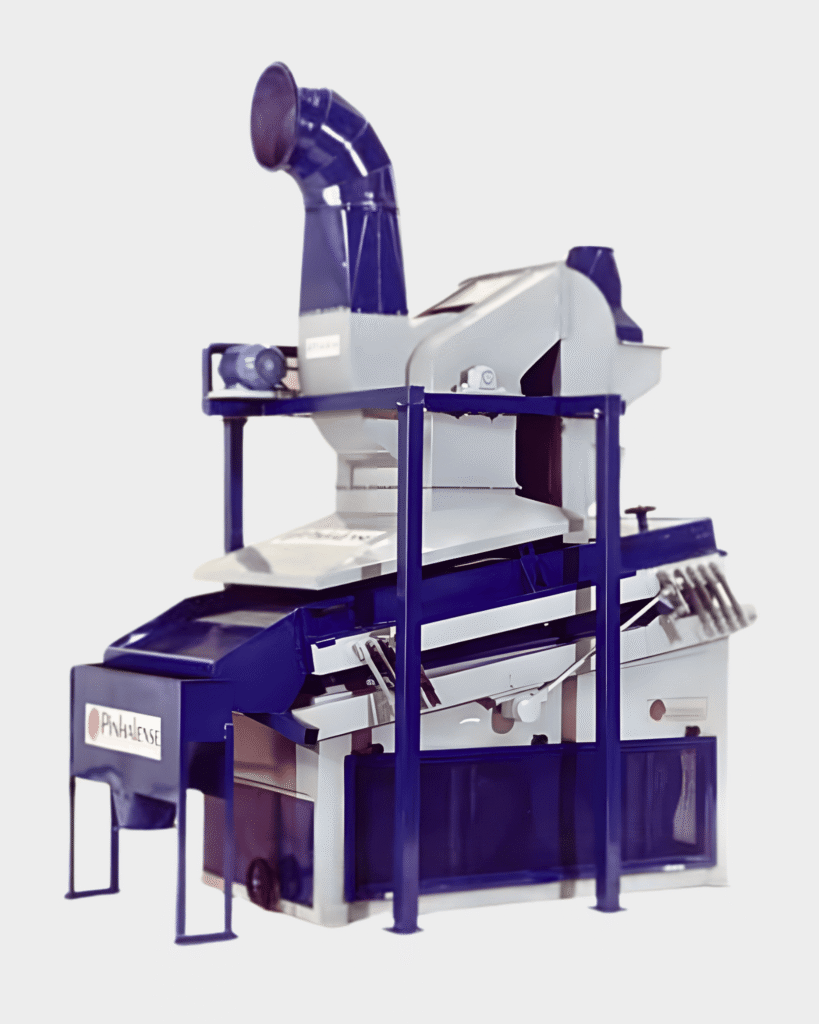

CPFBNR Low Noise Level Destoner
Product Overview
Models: CPFBNR-1 / CPFBNR-2 / CPFBNR-3 / CPFBNR-1A / CPFBNR-2A / CPFBNR-3A
The CPFBNR Flutu-Ar Low Noise Level Destoner is designed to remove stones, metal fragments, and other heavy impurities from granular agricultural products before further processing. Built with robust construction and a low-noise operating system, it helps improve final product quality while protecting downstream equipment from damage.
The machine can be used in the processing of coffee, soybeans, sorghum, corn, wheat, rice, cotton, peanuts, beans, peas, and other granular products, making it a versatile solution for agricultural processing plants.
Key Advantages
• Efficient Stone Removal – separates stones and heavy foreign materials from granular products with high precision.
• Low Noise Operation – designed for quieter performance in processing environments.
• Protects Other Equipment – helps prevent damage to downstream machines caused by hard contaminants.
• Versatile Product Handling – suitable for coffee and a wide range of grains and seeds.
• Adjustable Performance – air flow, deck slope, vibration, and feed rate can be tuned for different products.
Key Features
• Flutu-Ar destoning system with vibrating deck
• Adjustable air flow, vibration speed, and longitudinal slope
• Low-noise fan system
• Optional suction hood and frequency inverter
• Robust metallic structure for industrial use
• Side outlets for small particles and retention screen for foreign objects
Applications
The CPFBNR Low Noise Level Destoner is suitable for:
• Coffee processing plants
• Grain cleaning and preparation lines
• Seed processing facilities
• Milling operations
• Agricultural product pre-cleaning systems
It can process products such as:
• Coffee
• Soybeans
• Sorghum
• Corn
• Wheat
• Rice
• Cotton
• Peanuts
• Beans
• Peas
Technical Specifications
Available Models & Capacity
| Model | Capacity | Motor Configuration | Intake Height |
|---|---|---|---|
| CPFBNR-1 | 3.2 – 4.5 t/h | 5 / 0.5 hp | 2.35 m |
| CPFBNR-2 | 6.0 – 7.2 t/h | 5 / 0.5 hp | 2.35 m |
| CPFBNR-3 | 8.0 – 10.0 t/h | 5 / 0.5 hp | 2.35 m |
| CPFBNR-1A | 3.2 – 4.5 t/h | 5 / 0.5 / 5 hp | 2.80 m |
| CPFBNR-2A | 6.0 – 7.2 t/h | 5 / 0.5 / 5 hp | 2.80 m |
| CPFBNR-3A | 8.0 – 10.0 t/h | 5 / 0.5 / 5 hp | 2.80 m |
Capacity reference is based on product with repass of up to 20% and density of approximately 0.65 t/m³, such as clean coffee.
How It Works
The CPFBNR uses a vibrating perforated deck, controlled airflow, and adjustable vibration to stratify product by weight. Lighter product floats on the air cushion and moves toward discharge, while heavier impurities such as stones remain in contact with the deck and are directed to the stone outlet.
This process improves cleaning efficiency and prepares product for the next stages of processing.
